12hp diesel 4WD agricultural tractor
- Product No.:202471915333
12hp diesel 4WD agricultural tractor
1. Brief Introduction
HS910 series is our newly develop 4WD multifunction agricultural purpose compact mini tractors, it is an agricultural equipment between a power tiller or hand tractor walking tractor and an agricultural tractor powered by water-cooled diesel engines.
We mainly have two series of such mini tractors. One is synchronized 4WD mini tractors. It has 4 gearboxes, the front gearbox, rear gearbox, middle speed reducer gearbox, and the front sub gearbox. The front gearbox, connecting with front axle, is the power source for driving the mini tractor when you use front 4x2 driving mode. The rear gearbox, connecting with rear axle, is the power source for driving the mini tractor when you use rear 4x2 driving mode. The middle speed reducer gearbox is used to reduce the power speed from engine crankshaft in order to make sure the PTO rotation speeds meet the requirements for different accessories. The front sub-gearbox is used to give an speed option for high speed and low speed. As its name implies, you can choose to work either at 4x2 condition(front 4x2 and rear 4x2) or 4x4 condition. The other one is full-time 4WD mini tractor, it has 2 gearboxes, one is the main gearbox, the other is speed reducer gearbox. You can only use 4x4 at any time.
Both models can be equipped with over 30 kinds of agricultural accessories to realize different kinds of farm work, such as back rotary tiller, back ditching machine, potato harvester, mowers, weed shredder, potato/wheat/corn seeder and spreader 2 in 1, disc plough, one side plow, reversible plow 2-tind plow etc.

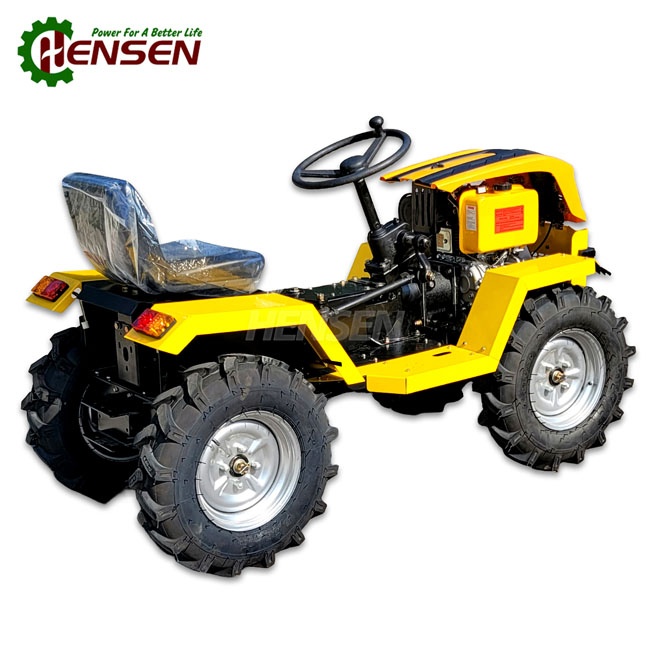

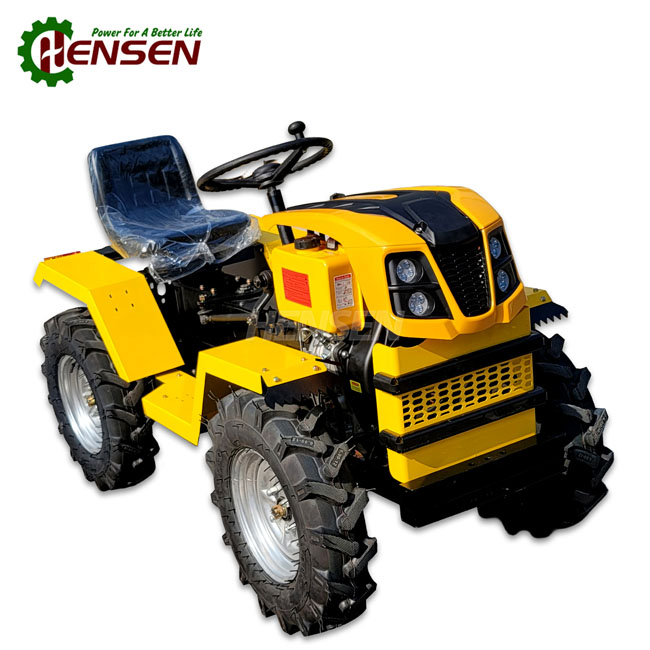

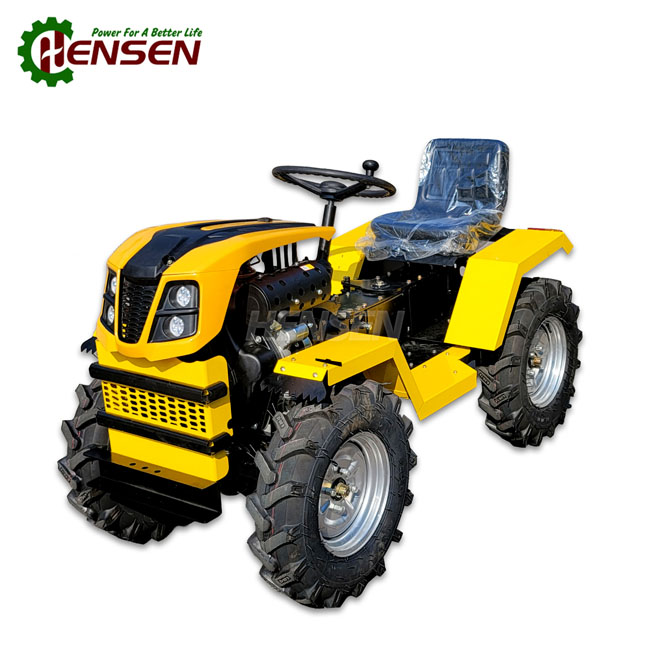

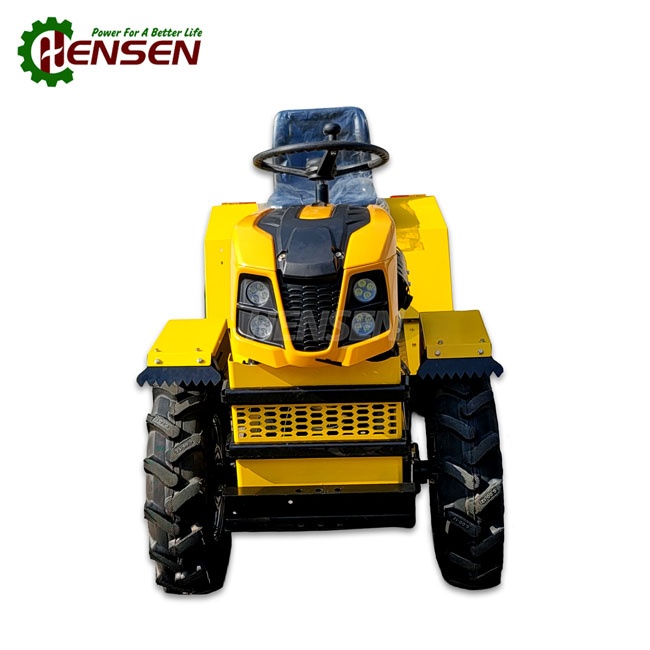

2. Photos
3. Technical Parameters
4. Factory View
Our factory covers an area of about 3000m2 and has a 50-m production line, with a daily production capacity of 20 units. We design the complete mini tractors and the drawing of each spare part by ourselves, and most of the spare parts are made by our suppliers.
5. Packaging Demonstration
We have two types of packaging. The first one is steel frame with plastic wrapping. The second is wooden box packaging.
6. Container Loading
1. Brief Introduction
HS910 series is our newly develop 4WD multifunction agricultural purpose compact mini tractors, it is an agricultural equipment between a power tiller or hand tractor walking tractor and an agricultural tractor powered by water-cooled diesel engines.
We mainly have two series of such mini tractors. One is synchronized 4WD mini tractors. It has 4 gearboxes, the front gearbox, rear gearbox, middle speed reducer gearbox, and the front sub gearbox. The front gearbox, connecting with front axle, is the power source for driving the mini tractor when you use front 4x2 driving mode. The rear gearbox, connecting with rear axle, is the power source for driving the mini tractor when you use rear 4x2 driving mode. The middle speed reducer gearbox is used to reduce the power speed from engine crankshaft in order to make sure the PTO rotation speeds meet the requirements for different accessories. The front sub-gearbox is used to give an speed option for high speed and low speed. As its name implies, you can choose to work either at 4x2 condition(front 4x2 and rear 4x2) or 4x4 condition. The other one is full-time 4WD mini tractor, it has 2 gearboxes, one is the main gearbox, the other is speed reducer gearbox. You can only use 4x4 at any time.
Both models can be equipped with over 30 kinds of agricultural accessories to realize different kinds of farm work, such as back rotary tiller, back ditching machine, potato harvester, mowers, weed shredder, potato/wheat/corn seeder and spreader 2 in 1, disc plough, one side plow, reversible plow 2-tind plow etc.
2. Photos
3. Technical Parameters
Drive mode |
gear driven |
Speeds |
4F+2R |
Max. traveling speed |
17km/h |
Working efficiency |
≧0.1hm2 |
Starting System |
electric start with 33Ah battery |
Turning system |
middle turning |
Min. turning radius |
3m |
Wheels |
4×6.00-12 |
Brake system |
front foot brake |
Engine |
diesel 188(12hp) |
Fuel tank capacity |
5.5L |
Fuel consumption |
≦30kg/h㎡ |
Container loading quantity |
12 set/20FT, 39set/40HQ |
4. Factory View
Our factory covers an area of about 3000m2 and has a 50-m production line, with a daily production capacity of 20 units. We design the complete mini tractors and the drawing of each spare part by ourselves, and most of the spare parts are made by our suppliers.
5. Packaging Demonstration
We have two types of packaging. The first one is steel frame with plastic wrapping. The second is wooden box packaging.
6. Container Loading
