Four wheel drive agricultural compact mini small tractor powered by Loncin EURO-V LC192FD gasoline engine

Four wheel drive agricultural compact mini small tractor powered by Loncin EURO-V LC192FD gasoline engine

Product No.：2025612161550
Price：Please send us e-mail for quotation
Color：Tailor-made
Warranty ：1 year
Size：1920*915*1150mm
Fuel：gasoline
Online Inquiry

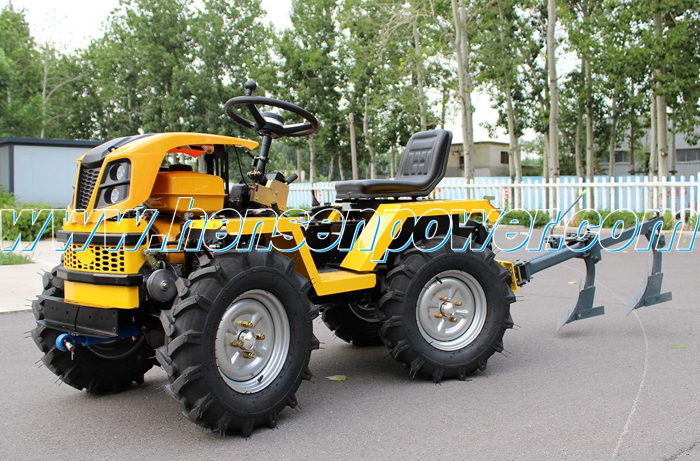

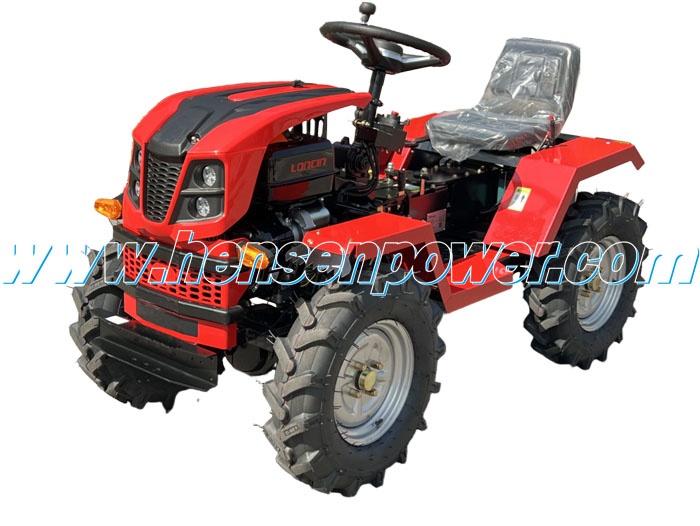

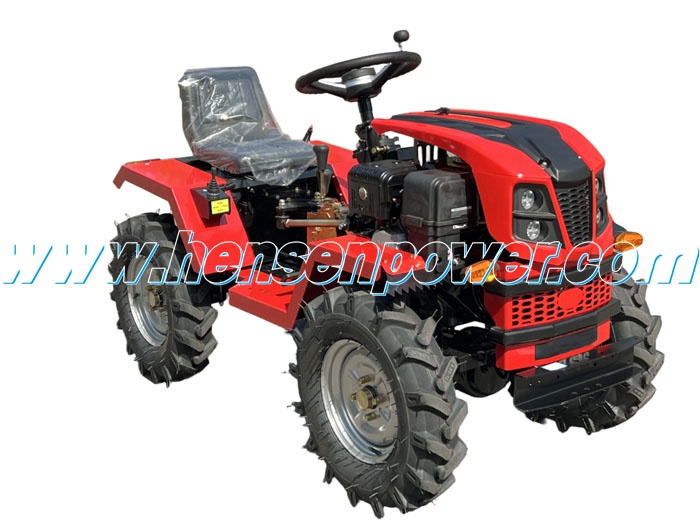

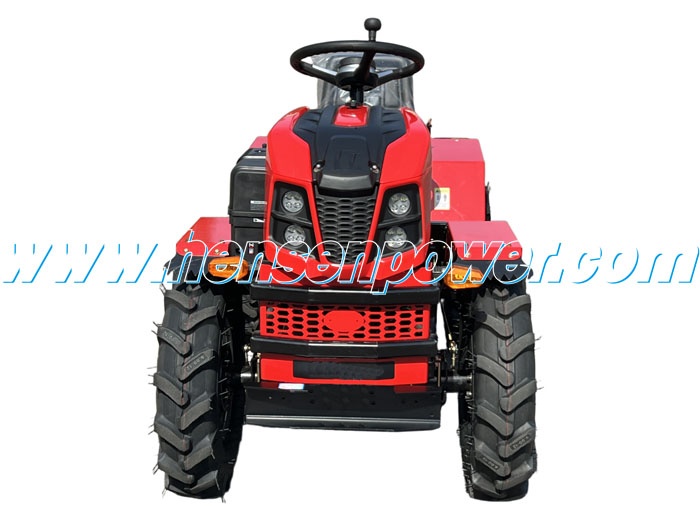

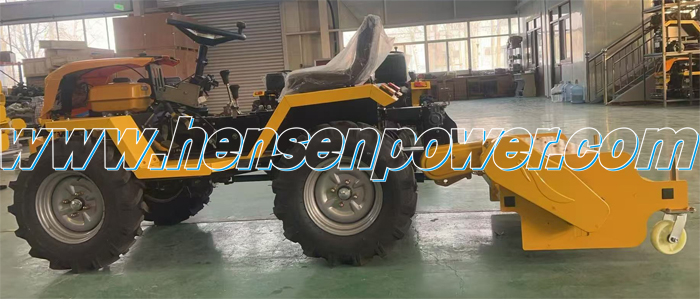

Four wheel drive agricultural compact mini small tractor powered by Loncin EURO-V LC192FD gasoline engine

Loncin LC192FD is one of the most popular, mature and advanced single cylinder gasoline engine in the market, and it enjoys very high reputation especially in the European countries. And the after-sale service is also easy to be realized in the European Union.

We can use this model 18hp gasoline engine on our 4 wheel drive compact agricultural tractors for customers from anywhere, especially from the European countries. With this engine, our tractor enjoys following features:
1. Attractive appearance;
2. High and stable power output;
3. Euro-V certified emission standard;
4. Higher profit for reselling and retaling.

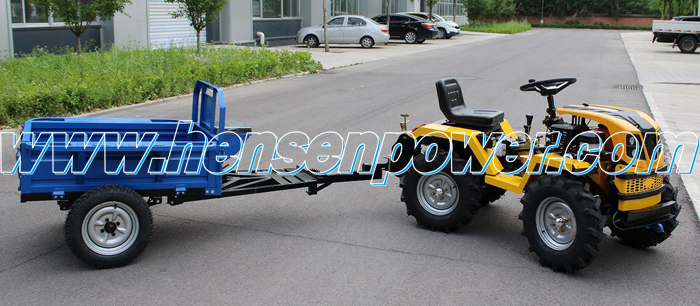

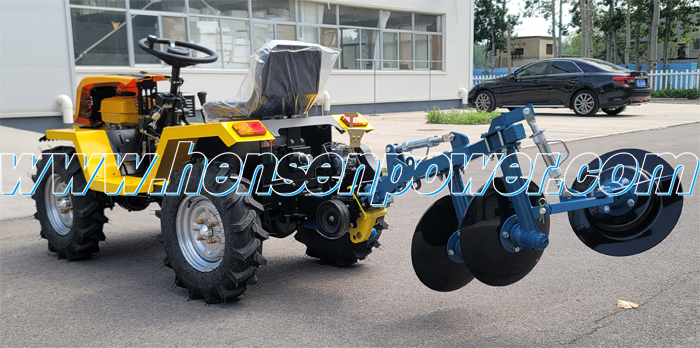

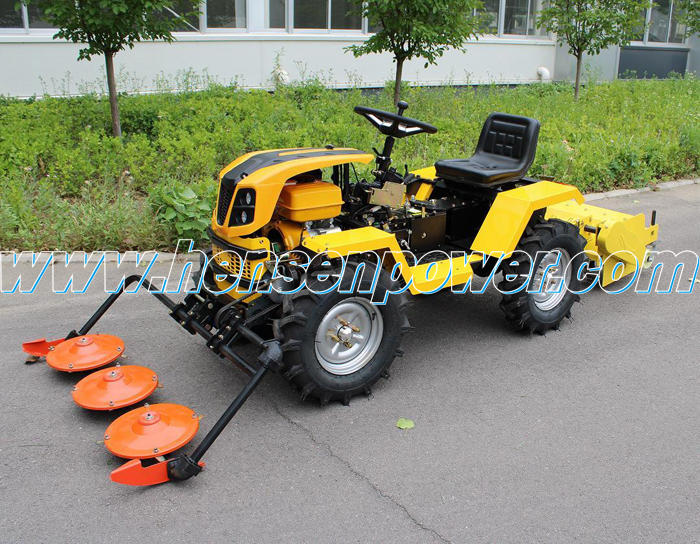

Our mini tractor is a multifunction model, which can be equipped with about 30 kinds of accessories, such as back rotary tiller, weed shredder, 3-disc mower, potato harvester, snow/soil shove etc. And we are developing more and more accessories in order to enrich our ranges.

Technical Parameters:

Model		HS910G-4WD
Power		18HP, gasoline, Air-Cooled, Single Cylinder
Overall Dimensions: (L×W×H)		1920 × 915 × 1150mm
Tyres Size	Front	6,00-12 Herringbone Tire
	Rear	6,00-12 Herringbone Tire
Working Area		Garden/Small Farm /Greenhouse etc.
Working weight		460 KG
Transmission Structure		Gear + Shaft Transmission
Driving Model		4 Wheel Drived, All Time
Light System		Front LED Headlight, Rear Signal Lights
Brake System	Foot Brake	Disc Drum Brake at Front Axle
Gearbox Shifts		4 Forward, 2 Reverse; (2F+1R)*2
Gearbox Oil Capacity		2,8 L 85W/90 Heavy Load Gear Oil
Steering Style		Middle Mechanical Turning with differential Gears
PTO Speed		179rpm，540rpm，790rpm，2245rpm
Battery		12V, 32.5AH Maintenance-Free Battery
Hydraulic System		DC12V, Electromagnetic Hydraulic System
Gears & Speeds	Low Speed	25.1m/min (Reverse), 32.9m/min (F), 65.0m/min (F)
	High Speed	88.0m/min (Reverse), 115.0m/min (F), 205.0m/min (F)
Max. traveling speed		13km/h
Min. turning radius		2.5m
Gasoline Engine	Model	LONCIN LC192FD
	Type	Single cylinder,4-stroke,horizontal,air-cooled, gasoline
	Cooling mode	Air cooling
	Power	18hp(maximum)
	Rated speed	3600rpm
	Fuel Consumption	≦30kg/hm²
	Filter Type	Oil Bath Filter , 10ml Volume
	Engine Oil	SJ Grade 15W 30-40
	Engine Oil Volume	1.1L
	Displacement	459cc
	Fuel Type	Gasoline #92
	Fuel Tank Capacity	6.5L
	Starter Way	Electric start & Hand Recoil

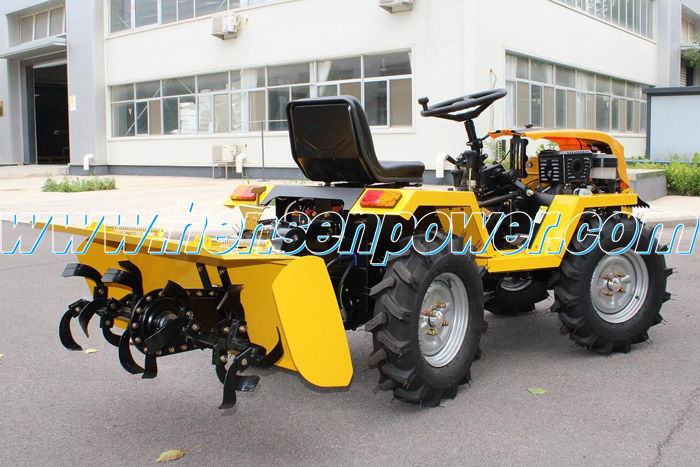

Back Rotary Tiller	Working width	900mm, 18pcs blades
	Working depth	50-250mm
