Hensen Power Technology Co., Limited focus on research and development of small agricultural machinery especially 4 wheel drive small tractors for garden and agriculture. It has two factories, one for power tillers motor cultivators mini tillers and ride-on tillers, and is located in Chongqing city, the other is for 4x4 tractors located in Weifang city, Shandong province.

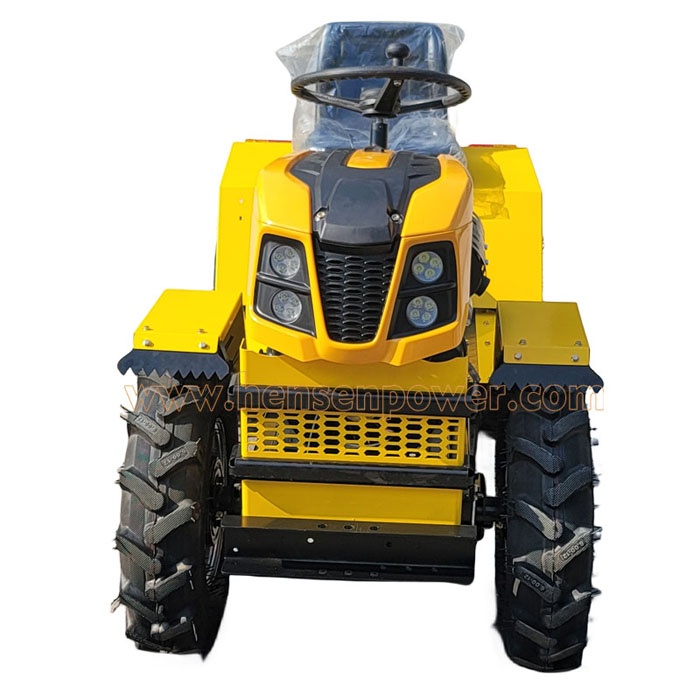

HS910G-4WD is one of our new model four wheel drive mini tractors, it is designed for small farm plots, gardens, orchards, and it can meet all kinds of agricultural work or garden work, such as soil cultivation, weed shredding, snow/soil pushing, potato harvesting, plowing, grass cutting etc.

We mainly have 2 models available for this design for the moment. One is 18hp gasoline 4 wheel drive mini tractors, the other is 18hp diesel 4x4 compact tractors, both of them can be equipped with about 30 kinds of accessories. With one tractor in hand, you can finish all work with different accessories.

For gasoline engines, the standard model is FUCHAI EURO-V FC192F, 457cc, 18hp, whose output power is strong and continuous. We can also offer LONCIN EURO-V LC192FD, 459cc, whose maximum power is 18hp too. It is more famous in the world and enjoys a better spare parts availability.






3. Technical Parameters

Model		HS910G-4WD
Power		18HP, gasoline, Air-Cooled, Single Cylinder
Overall Dimensions: (L×W×H)		1920 × 915 × 1150mm
Tyres Size	Front	6,00-12  Herringbone Tire
	Rear	6,00-12  Herringbone Tire
Working Area		Garden/Small Farm /Greenhouse etc.
Working weight		460 KG
Transmission Structure		Gear + Shaft Transmission
Driving Model		4 Wheel Drived, All Time
Light System		Front LED Headlight, Rear Signal Lights
Brake System	Foot Brake	Disc Drum Brake at Front Axle
Gearbox Shifts		4 Forward, 2 Reverse;       (2F+1R)*2
Gearbox Oil Capacity		2,8 L   85W/90 Heavy Load Gear Oil
Steering Style		Middle Mechanical Turning with differential Gears
PTO Speed		179rpm，540rpm，790rpm，2245rpm
Battery		12V, 32.5AH Maintenance-Free Battery
Hydraulic System		DC12V, Electromagnetic Hydraulic System
Gears & Speeds	Low Speed	25.1m/min (Reverse), 32.9m/min (F), 65.0m/min (F)
	High Speed	88.0m/min (Reverse), 115.0m/min (F), 205.0m/min (F)
Max. traveling speed		13km/h
Min. turning radius		2.5m
Gasoline Engine	Model	FC192F
	Type	Single cylinder,4-stroke,horizontal,air-cooled, gasoline
	Cooling mode	Air cooling
	Power	13hp(rated) / 18hp(maximum)
	Rated speed	3600rpm
	Fuel Consumption	≦30kg/hm2
	Filter Type	Oil Bath Filter , 10ml Volume
	Engine Oil	SJ Grade 15W 30-40
	Engine Oil Volume	1.1L
	Displacement	457cc
	Fuel Type	Gasoline  #92
	Fuel Tank Capacity	6.5L
	Starter Way	Electric start & Hand Recoil
Back Rotary Tiller	Working width	900mm, 18pcs blades
	Working depth	50-250mm
