four wheel drive multifunctional mini tractor with back rotary tiller

Our four wheel drive multifunctional mini tractor with back rotary tiller is designed for countries and regions with small and medium size farm lands, who have requirements for soil tilling, ditching, back rotary cultivating, weed shredding, earthing-up etc.
Our four wheel drive mini tractor are powered by both 10hp (12hp, 14hp, 16hp available) diesel engine and 18hp (9hp, 13hp, 15hp available) gasoline engines, customers can choose according to their needs. It has two gearboxes, one at the front, the other at the back. There is one speed reducer in the middle of the mini tractor offering a suitable rotation speed of the transmission to the back rotary tiller.

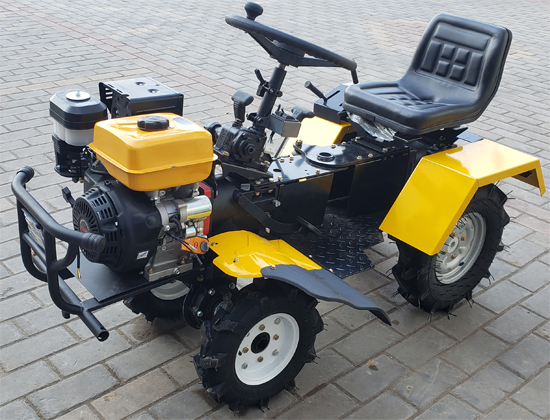

Main vehicle left side

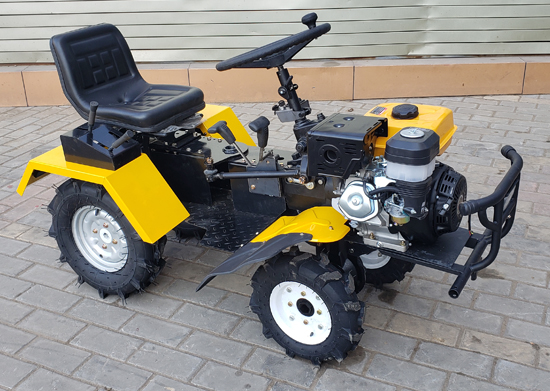

Main vehicle right side

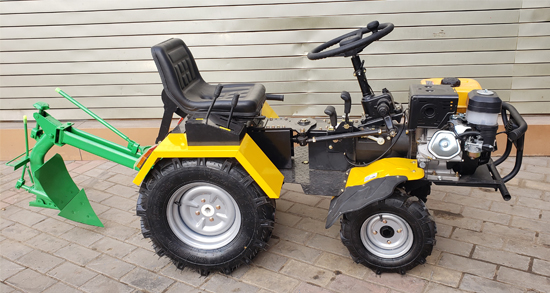

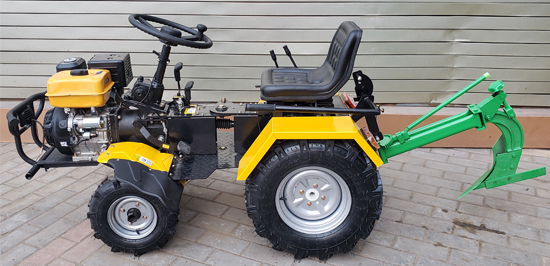

Main vehicle with one side plough

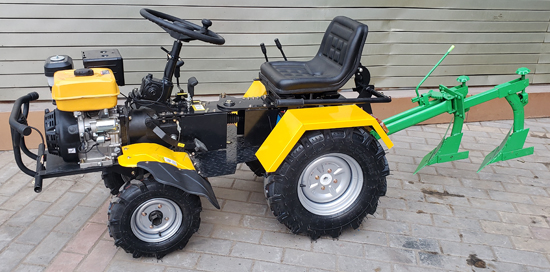

Main vehicle with 2-line plough


Main vehicle with reversible plough

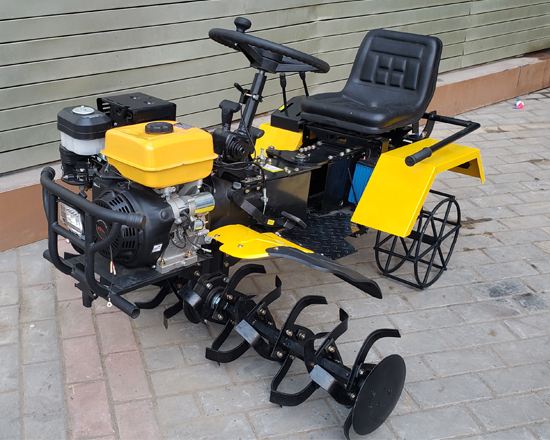

Main vehicle with front tilling blades and back iron wheels

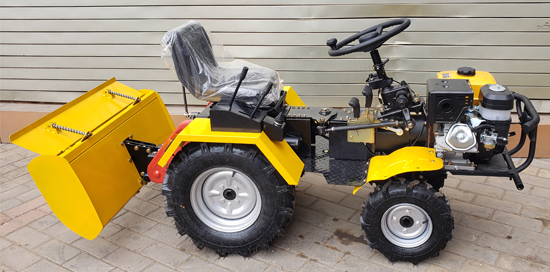

Main vehicle with back rotary tiller (with hydraulic lifting system)


Main vehicle with back PTO for more implements


Main vehicle with back connector for more implements

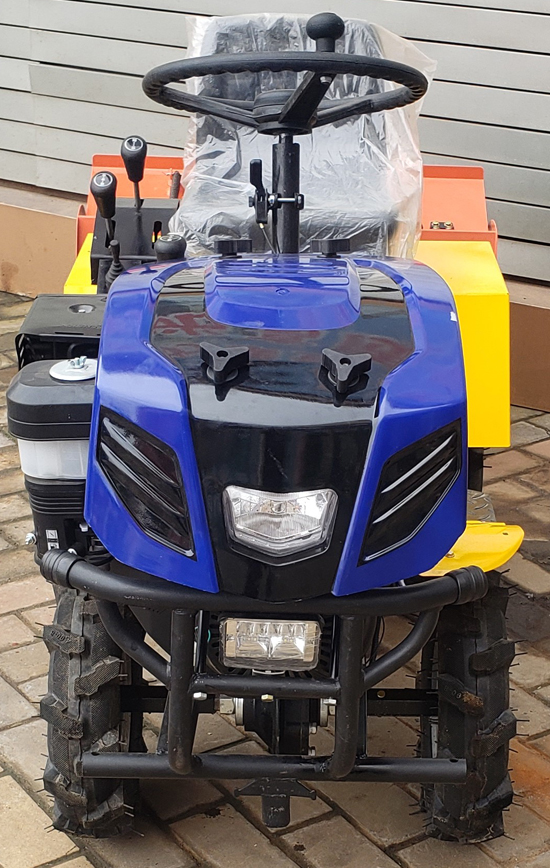

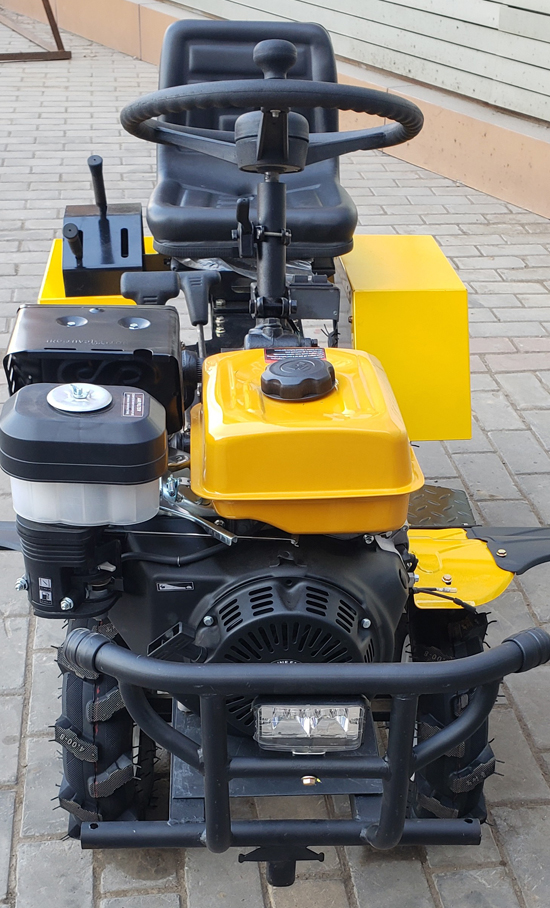

Front view of main vehicle

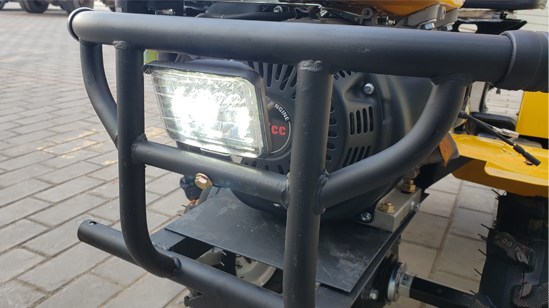

Front led light



Technical Specifications

Model HS910D-4WD / HS910G-4WD
Tiller Tilling width (mm) 1560
Tilling depth (mm) 300~420
Gear and speed (mm) Front gearbox: -1, 0-, 1, 2; Rear gearbox: -1, 0 , 1, 2
Starting System Recoil start / Electric start (20Ah battery)
Wheels Front 4.00-8, rear 6.00-12 rubber wheel
Standard blades 4 pcs * 5 groups dry land blades with side discs
Engine Fuel type Diesel / Petrol
Engine model Diesel 186F(10hp) / Petrol 192F(18hp)
Hour Capacity 0.04h/(h*m)
Fuel Consumption 30kg/h
Package Packing Size (mm) 1700× 770× 850
N.W/G.W(kg) 260/290
Container Loading Qty.(pcs) 30 sets / 20GP; 84 sets / 40HC
Others Warranty 1 year
