  • Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose
  • Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose
  • Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose
  • Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose
Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose

Four wheel drive gasoline mini tractor with multifunctions for agricultural purpose

Brief introduction
This mini tractor is a special equipment which is designed based on mini tillers and real mini tractors. It has the advantages of both mini tillers and mini tractors. It inherits the compact structure and flexbile vehicle body and has four wheel drive system of mini tractors. There is rear hydraulic lifting system, which is an optional mechanism which could help to realize the multi-functions of the mini tractor, such as rear rotary cultivating, rear ditching, rear potato digging, rear weeding etc. There is also a manual lifting system available as option to be used for rear ditcher, rear two-line ditcher, rear reversible ditcher etc. With a standard PTO and a adaptor at the back of the vehicle, it can realize more functions as we develop this product further.

This mini tractor has 3 gearboxes, one for front axle, one for rear axle, the third one for speed reduce in the middle part. For transportation purpose, with tires mounted, you can disengage any of the two driving gearboxes, changing the tractor into 2 wheel drive. But when the tractor is working in fields, with accessories mounted, please make sure both two gearboxes are engaged with power. Otherwise, the tractor cannot work, just working at the same place.

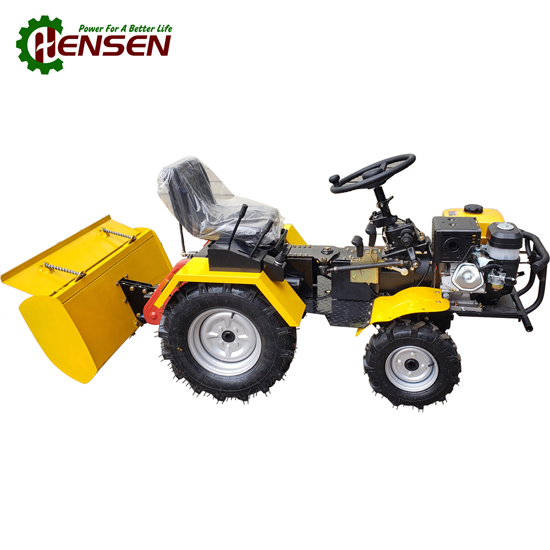

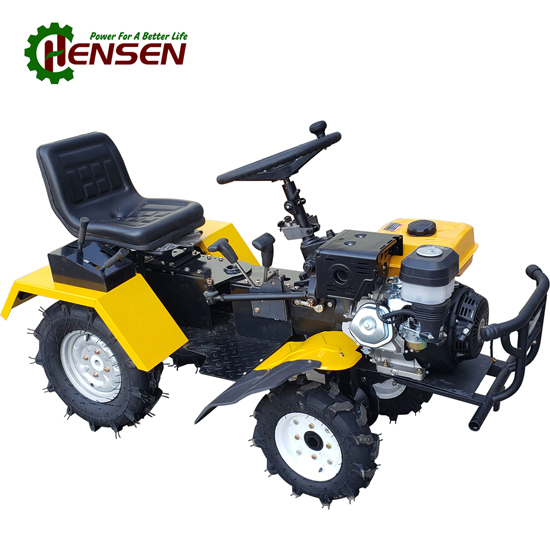

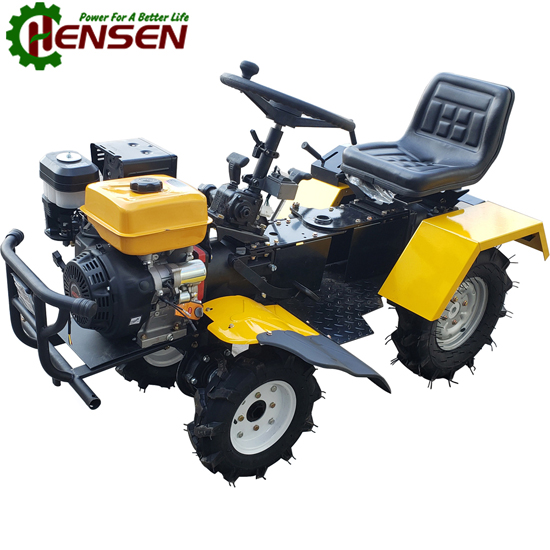

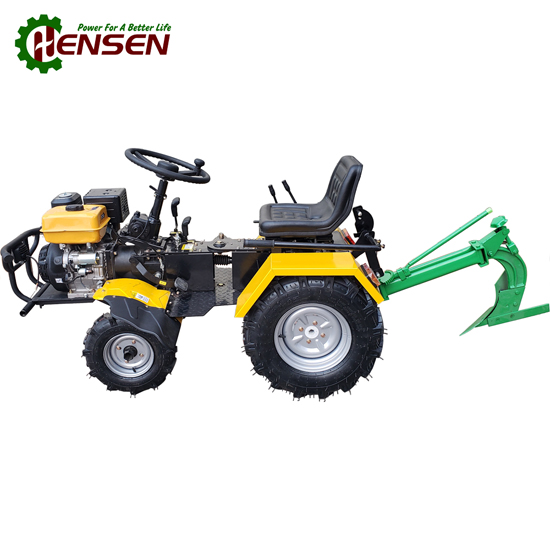

Photos

Technical specifications

Model

HS910G-4WD

Tiller

Tilling width (mm)

1560

Tilling depth (mm)

300~420

Gear and speed (mm)

Front

-1, 0, 1, 2

Rear

PTO 1: -1, 0, 1, 2(output speed: 600rpm/min)
PTO 2: -1, 0, 1, 2(output speed: 1200rpm/min)

Starting System

Recoil Start / Electric start with 20Ah battery

Wheels

Front 4.00-8, rear 6.00-12
a pair of iron wheels for rear axle

Blades

18 pcs deep tilling blades or 4 pcs 5 groups dry land blades

Engine

Fuel type

Gasoline

Engine model

FC192F gasoline engine (18hp)

Hour Capacity

0.04h/(h*m)

Fuel Consumption

30kg/h

Package

Packing Size (mm)

1550× 780× 760

N.W/G.W(kg)

260/290

Container Loading Qty.
20FT/40HQ (pcs)

63

Accessory lifting system

Hydraulic

for back rotary cultivator

Manual

for reversible ditcher, one side ditcher, 2-line ditcher

Available accessories

back rotary cultivator, reversible ditcher, one side ditcher, 2-line ditcher

Helping tool for wheel change

a jack to lift the tractor, and change wheels
